Fujinon® EPX-4400 VP-4400 Video Processors,
Printers, RGB Cables,
Monitors
USED PRE-OWNED Fujinon® EPX-4400 / VP-4400
Fujinon's new 4400 System platform, built upon the new "Fully Digital"
EPX-4400 processor and light source has been designed to meet the needs of
any facility, at any level of care, while offering an advanced product line
designed to address research and teaching programs. The 4400 System is the
only endoscope system in the world to offer Digital Signal Processing (DSP)
in each endoscope, and in the processing platforms. This advancement brings
a level of image clarity and resolution unseen in traditional endoscopes.
Offering endoscopes with Fujinon's traditional 410,000 pixel CCD, and
FujiFilm proprietary Super CCD endoscopes, the 4400 System offers a new
level of imaging capability. FujiFilm's proprietary Super CCD brings
megapixel (1 million pixels +) endoscopy to the forefront of the market.
All systems, regardless of where they are applied offer you the advantages
of G-5 Endoscopy™ from Fujinon. The choice is yours to make.
Download Manual Now
EPX-4400 Brochure (.pdf)
| Description | Video processor for EVE
400 and EVE 500 series endoscopes This is the first processor in the world to make endoscopy completely digital, so that there is no loss of information during signal conversion. The result is high resolution and precise image quality for examining even the smallest changes in the tissue and mucosa. This represents a marked advance in the diagnosis of findings, which can be easily and quickly documented using a continuously digital process — both on the network and on a compact flash memory card. |
|
| Power NTSC | 120 V / 60 Hz / 0.36 A | |
| Power PAL | 230 V / 50 Hz / 0.2 A | |
| Current consumption (rated) NTSC | 0.31 A | |
| Current consumption (rated) PAL | 0.17 A | |
| Image recording procedure | Simultaneous | |
| Image recording medium | Colour chip CCD | |
| Signal-to-noise ratio | > 40 dB | |
| Metering mode | AVE (average) / PEAK (peak value) | |
| Gain | Normal, +2 dB, +4 dB, +6 dB | |
| Freeze-frame mode | Field/Frame | |
| Image zoom | Up to 2x electronic zoom adjustable in 20 steps of 0.05 | |
| Memory | 44 different patients /
20 different clinical procedures / 20 different examiners / 5 individual colour settings selectable for 5 examiners |
|
| Digital outputs | DVI: LCD monitor / DV:
digital video recorder / USB: connection for digital printers / Ethernet: network connection for PC / CF: facility for recording individual images on memory card |
|
| Endoscopes supported | Fujinon EVE 400 series, Fujinon EVE 500 series | |
| Size (W x H x D) | 350 x 75 x 420 mm | |
| Weight | 8.0 kg |
From analog to digital -- state-of-the-art FUJINON technology begins a new endoscopic imaging revolution. The Fujinon 4400 is a fully digital electronic endoscope system capable of vividly depicting the future of endoscopic diagnosis. Advanced processing technology allows the 4400 to retain image fineness and precision picture quality when viewing the most obscure changes in living tissue, or very subtle changes in mucosal detail. The result is a dramatic improvement in quality diagnosis that can be documented and digitally stored on a network, or on a Compact Flash media card inserted into the processor unit.
FICE TM (Fuji Intelligent Color Enhancement)
The next generation of endoscopic imaging, FICE, has arrived with
Fujinon's new EPX-4400 video processor and light source system. FICE
dramatically enhances the appearance of mucosal tissue structures.

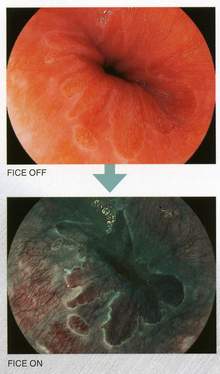

(Above an example of EPX-4400 with FICE. In this example, it became
easier to observe characterictics of the mucosal tissue and
capillary orientations became clearer in the cardiac portion of
esophagus.)
Blood Vessel Enhancement Function
BLV - Off BLV-On
Detailed images of vein patterns are useful for advanced diagnosis of alimentary canals. The Blood Vessel Enhancement Function improves the projection and clarity of vein patterns.
Automatic Light Control (ALC) Illumination Adjustment Function
The 4400 employs Fujinon's unique new form of automatic light control. This new advanced system reduces light halation and provides images that are easier on the physician's eyes.
ALC - off ALC - on
|
Condition:
= Very Good!
= Good
Condition!
= Good to
Fair Condition!
= Fair
Condition!
= Fair to
Poor Condition
= Poor
Condition
= Yellow
Numbers or Non-OEM Insertion Tube
Non
OEM Image Guide bundle
S = Special *Price No discount
= New
Listing!
=
Price Drop!
=
Sale Pending
= no longer available
= Click Currency Exchange
**
most scopes have this designation
Click on
){kind=small}
to view Scope Online!
Click on *Price to order Secure Online!
1,2,3,4,5 etc. are footnotes see below!
DEALERS: 1800endoscope.com can extend 10% discount if 2 endoscopes are purchased within 30 day period non retroactive. ( Our records must show 2 scopes on one month period prior to sale )
FOR PRICING CALL 1-800-363-6726 ++ 941 792 7138 WE WILL BEAT ANY PRICE!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
email for $ € pricing
valorar preços:
|
|||
|
Manufacturer |
Model No. |
|
ACCESSORIES |
VOLTAGE |
CE
|
|
Condition |
|
|
|
|
|
|
|
|
|
|
|
| Fujinon® | Fujinon® | Fujinon® | Fujinon® | Fujinon® | Fujinon® | Fujinon® | Fujinon® | |
|
|
|
|
|
|
|
|
|
|
|
Fujinon®
|
EPX-4400 |
){kind=small} |
w/kybrd |
NTSC 100V 50-60 HZ with Free Transformer 100v - 110v |
CE |
|
||
|
|
|
|
|
|
|
|
|
|
|
SAH2OF |
Fujinon® WATER BOTTLES....
|
 |
$295.00 + Shipping |
CABLING FOR EPX-4400 :
FROM THE EPX-4400 " RGB OUT ", PLUG THE S-VIDEO CABLE
PLUG THE RBG CABLE CABLE INTO THE SONY OR OLYMPUS MONITOR BLACK ( RGB S ) IN.
PUSH RGB BUTTON FOR LIVE IMAGE ( MONITORS DUE VARY, REFER TO OPERATION MANUAL )
|
RGB CABLE
|
R.G.B. VIDEO MONITOR CABLES! |
|
|
|
*Price
|
|||
|
Manufacturer
|
Model No.
|
 Click for image! |
FOR USE WITH:
|
|
Condition |
*Price
|
||
|
Portascope.com Inc. |
SVCEPX4400 |
|
Pentax EPX-4400/3500 RGBS VIDEO CABLE TO SONY 13/1943MD |
25' |
|
|
|
|
|
REMOTE SYNC CABLE
|
||||||||
|
|
VOLTAGE TRANSFORMERS |
Voltage Transformers for 110-220v volt
systems! |
|
|
|
|
|
Manufacturer |
Model No.
|
Click for image! |
Specs:
|
|
Condition |
*Price
|
|
VT200B
|
VT-200B TC-2000B
|
Dimensions and Weight:
|
2000 Watt Step Up and Down Transformer Features:
|
|
NEW!
|
+ Shipping
|
|
Portascope.com Inc. |
SAACC CLK-4, CLV-U20, CLV-U40 EPX-4400 CV-140 A/C POWER CORDS |
|
|
|
NEW! |
$15.00
|
WORLD VOLTAGE ADAPTORS
|
|
|||
 Got
a question or can't find something? Use Form Below or E-mail us at
sales@1800endoscope.com
|
|||
|
|
|||
|
Portascope.com Inc.
1800Endoscope.com ® LLC sells New and Used Endoscopes, You may be Purchasing an item that may be subject to strict regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. Do not purchase any item unless you are licensed to purchase it. We will verify your eligibility to purchase and use this item before completing the transaction by having an FDA form printed and faxed back to us. Click here for this form. please Consult the FDAs Website for more information. ***** Halogen and Xenon Light Sources / Processors have used lamps when shipped, If you require new lamp $480 additional UNITS ARE PACKED IN PLAIN BROWN BOXES, NOT ORIGINAL MANUFACTURER BOXES! PROCESSORS COME WITH ITEMS SHOWN ON LISTING FOR THE PRICE SPECIFIED! OTHER ITEMS SOLD SEPERATELY! +1800Endoscope.com is not responsible for any typo's or mis-information on Specifications or condition of equipment * Repairs Performed free of charge within 30 days of purchase at our discretion, shipping additional. Pre-Owned ( Used ) Endoscopes, ( Used ) Light Sources / Processors, Endoscopy Equipment are NOT IN NEW CONDITION, they are USED! They may have cosmetic defects, Dings, Dents, Plastic or Paint blemishes and may or may not contain Original Equipment Manufacturer ( O.E.M. ) repairs and repair parts. Do not purchase if you require New O.E.M Equipment with all O.E.M parts. The F.D.A. requires all medical equipment sold in the U.S.A. to have O.E.M. Parts. After Purchase for use in the U.S.A., send your equipment into the Manufacturer to be registered and for inspection of your equipment purchase. Have any parts which are non - O.E.M. replaced by the manufacturer for use in the U.S.A.. *90 Day LIMITED Warranty on Scopes Only, for complete warranty see our warranty page., if not satisfied return in 5 days for refund,( less shipping charges and any damaged observed upon receipt by our discretion). Please call or e-mail reference number when inquiring or ordering, payment made by Credit Card, Wire Transfer or COD CASH ONLY! Any equipment returned after 5 business days ( 10 days International ), is subject to a %25 restocking fee! For Full Warranty Click Here!
**CE Marking is the symbol
ALL MEDICAL EQUIPMENT SHOWN ON THIS WEBSITE REQUIRES PROPER STERILIZATION EQUIPMENT WHICH IS IN CURRENT FDA OSHA RECOMMENDATION. WE DO NOT SELL STERILIZATION EQUIPMENT. IT IS BUYERS RESPONSIBILITY TO PROVIDE CORRECT AIR TIGHT TESTING AND STERILIZATION EQUIPMENT. CONTACT MANUFACTURER FOR AUTHORIZED STERILIZING PROCEDURES AND REFER TO THEIR MANUALS AND PROTOCOL ***not FDA 510K: This product has not yet been approved in the United States by the Food and Drug Administration (FDA). +1800Endoscope.com is not responsible for any typo's or mis-information on Specifications or condition of equipment * Repairs Performed free of charge within 30 days of purchase at our discretion, shipping additional. 1
not 510K: This product has not yet been approved in the United States by the Food and Drug Administration (FDA). 2PRE O.E.S.® = Non - Submersable This product has not yet been approved in the United States by the Food and Drug Administration (FDA).. 3This product has not yet been approved in the United States by the Food and Drug Administration (FDA). 4 Halogen and Xenon Light Sources / Processors have used lamps when shipped, If you require new lamp $480 additional 5PLEASE NOTE, PRINTERS ARE TESTED AND PHOTOS PROVIDED. ALL USED PRINTERS ARE SOLD AS IS, REMOTE CABLES ARE NOT INCLUDED, YOU WILL BE REQUIRED TO PURCHASE CABLES FROM Fujinon®, Fujinon® OR FUJINON® INC. YOU WILL HAVE TO PURCHASE PRINTER PAPER AT ADDITIONAL COST AS WE ONLY SUPPLY ENOUGH TO TEST THE UNIT.
6 We can no longer offer 90 day *LIMITED Warranty on EPX-4400 / 200. Olympus America no longer repairs these units or provides repair services on these units
|
